LSR Transparent Lens and Outer Sleeve Molding
1. The part is used in treatment of cervical cancer, and it was produced in Europe because of the high requirement. But it is very smoothly when we run the first mold trial.
2. The part can be fall down freely so it can be run automatically.
3. High requirement on the parting line. Need to control within 0.1mm.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description
Customized according to your needs

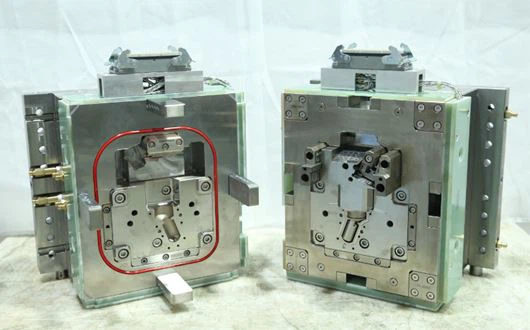

Part Name | Outer Sleeve LSR mold |
Part Size | 35.9*46.9*65.9 |
Part Weight | 128g |
Resin | Nusil 4940 |
Cavity | 1×1 Cavity Mold |
Runner System | 1 Drop valve gate cold runner |
Mold structure | Integrated vacuum system |
Dosing | Nexus 200L |
Machine | Arburg 470E |
Cycle Time | 75s |

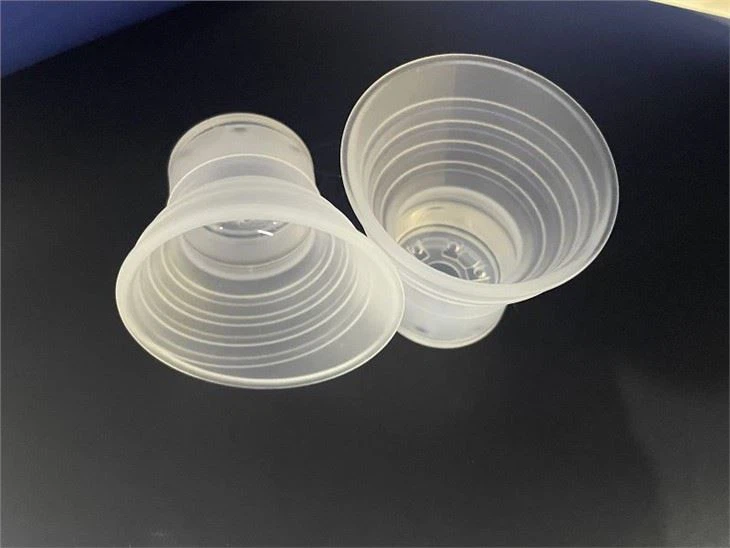

Part Name | Transparent Lens LSR mold |
Part Size | 53.7*53.2*49.2 |
Part Weight | 128g |
Resin | Nusil 4940 |
Cavity | 1×1 Cavity Mold |
Runner System | 1 Drop valve gate cold runner |
Mold structure | Integrated vacuum system |
Dosing | Nexus 200L |
Machine | Arburg 470E |
Cycle Time | 105s |
1. The part is used in treatment of cervical cancer, and it was produced in Europe because of the high requirement. But it is very smoothly when we run the first mold trial.
2. The part can be fall down freely so it can be run automatically.
3. High requirement on the parting line. Need to control within 0.1mm.
4. Strict production environment and bacteria requirement.
Class 8 Clean Room
Promise the quality
Class 8 clean room with top class imported high precision injection machine. The brand is Arburg and Engel. The environment and quality system is controlled strictly by ISO13485.
Our Customers
Rely on us and you won't regret
We cooperated with lots of famous medical company, such as Abbott, Stevanato Group, MERCK, Fresenius, Thermo Fisher etc. They audit our plants every year and keep good partnership with them for more than 10 years.
Design Capability
We have 50 design engineers, the molds design capability is 120pcs per month.
Engineer | Member Numbers | Tools Design capability per month (sets) | Monthly capacity |
Senior Design Engineers | 10 | 3 | 30 |
Junior Design Engineers | 10 | 3 | 30 |
Design Engineers | 30 | 2 | 60 |
Total | 50 | 8 | 120 |
