Plastic Mould Cost

Part Name: Junior Convertible V-Outlet Short

Arbor Head 2017 R4 Corrected ID

Part Size : 97X102X27

Part Weight: 36g

Resin: PA6 GF30(B3EG6)

Project Management

We have a mature and professional project management team covered 30 people, all the project engineers have more than 3 years’ experience in molds design and 5 years’ experience in molds projects management, and they are fluent in English communication.

In every step, we have strict process to follow and have standard documents to submit to customers, such as the DFM and Mold flow in project kicking off stage, then weekly progress report during molds manufacturing stage, and mold trial reports, trial video, samples measurement report after first mold trial.

SJ Group offer Strong Technical Support

SJ Group offer DFM and Mold flow report to support customer’s product development.

DFM Report includes parting line, Gate location and type, Ejection, Part layout and mould structure, Draft angle check, Wall thickness analysis, Surface treatment, Engraving, Tolerance study, Part issue and suggestion etc.

Mold Flow Report includes Material Data, Process Suggestion, Runner and gate Design, Wall Thickness, Filling Video, Injection Temperature, V/P Switchover, Injection pressure, Clamping force, Shear Rate, Volumetric shrinkage, Sink marks, Weld line, Air trap, Deflection etc.

Design Capability

We have 50 design engineers, the molds design capability is 120pcs per month.

Perfect Mold Shipping

All the molds SJ made include these 19 documents/data when shipping. The disk cover these data will ship together with the mold, and we also uploaded the data to FTP site for easy downloading.

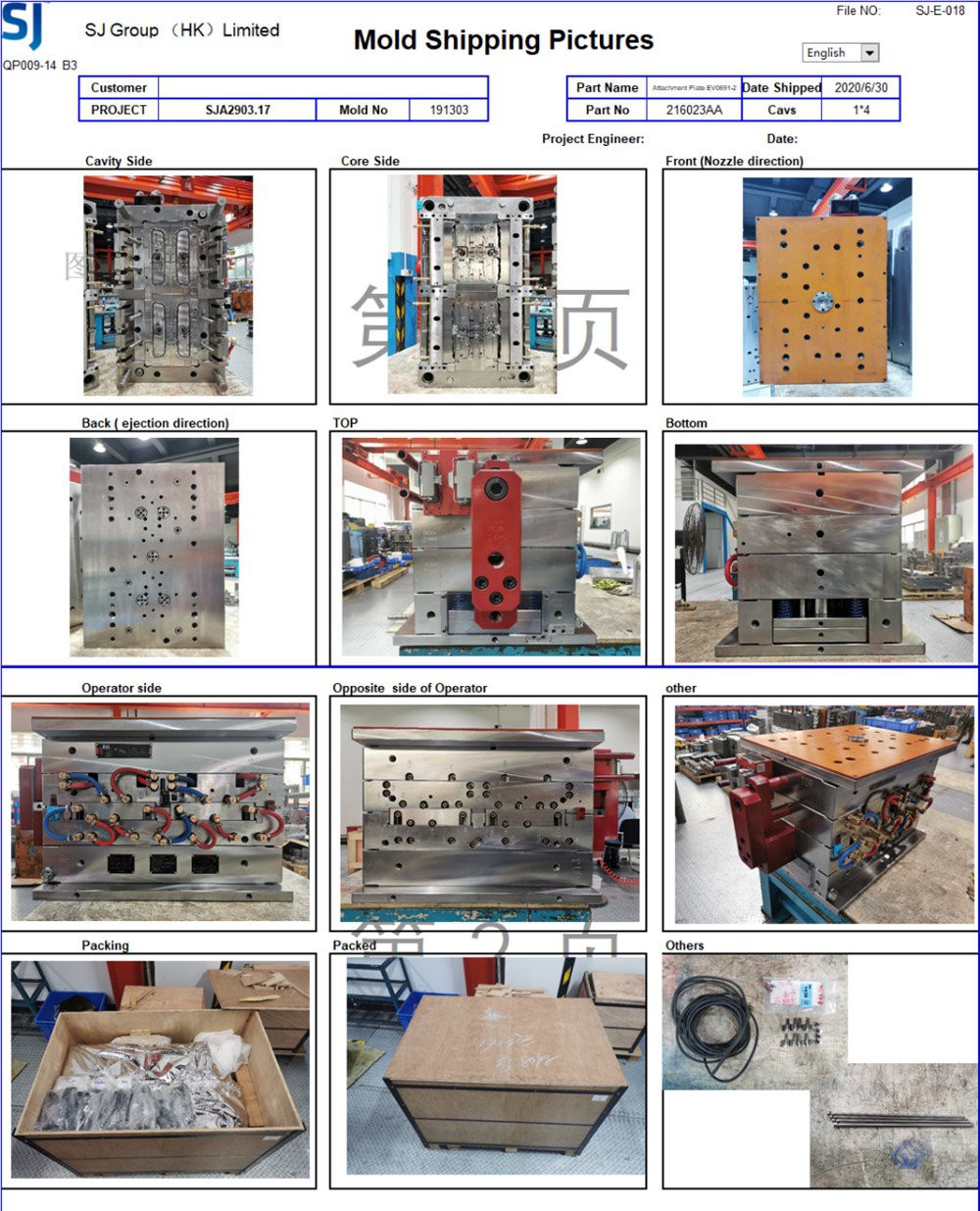

Molds are packed well as below:
