Precision Mold Making

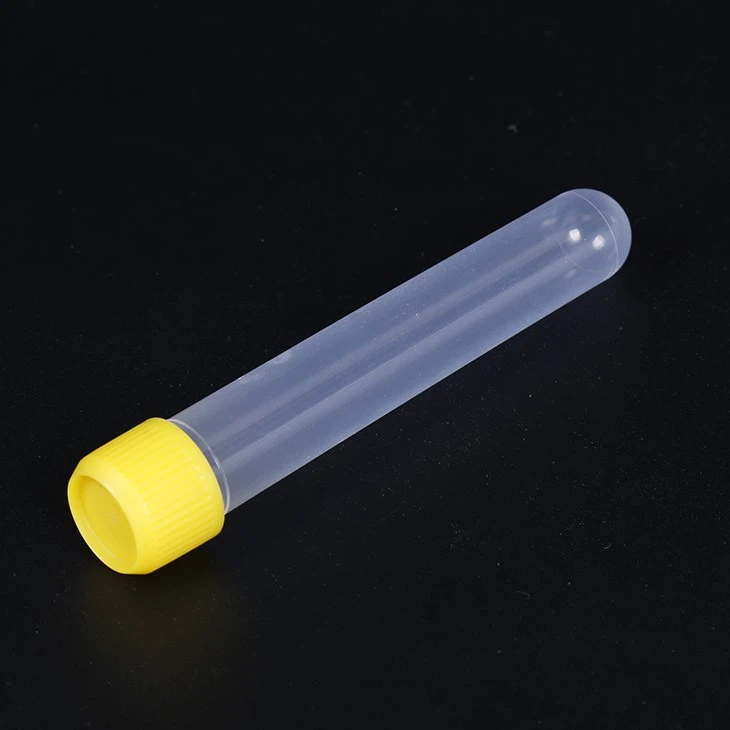

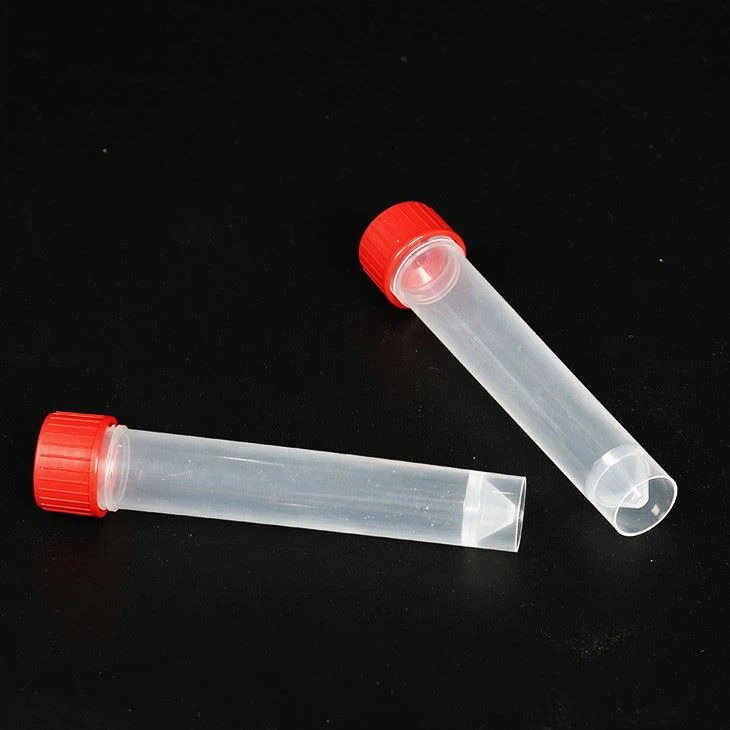

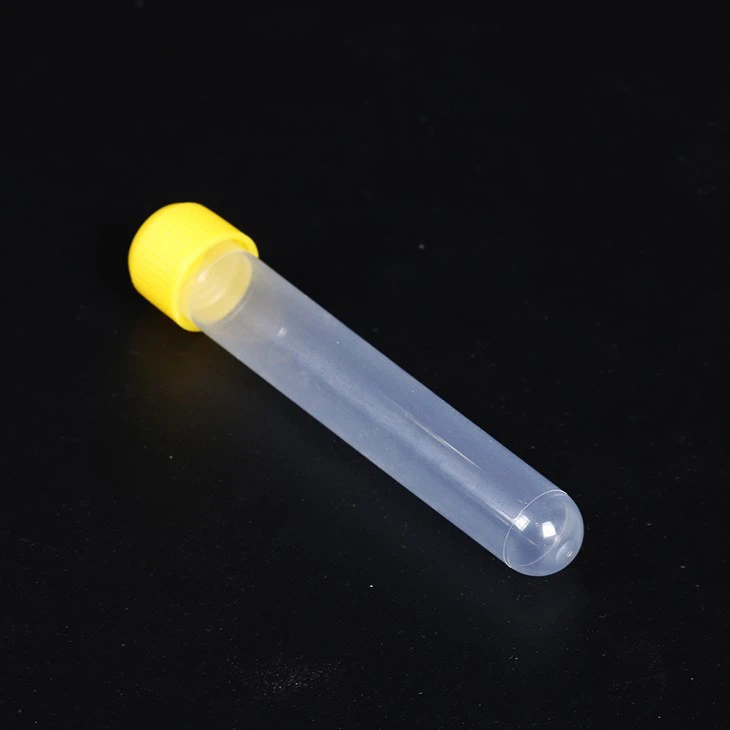

Description : Micro tubes and caps

Cavity : 32 cavity

Resin : HDPE+PP

Cycle time : 15s

Runner : 32 drop valve gate hot half

Press : 500T

Unit wight : 5.13g

Part size : 19.5X104.6mm

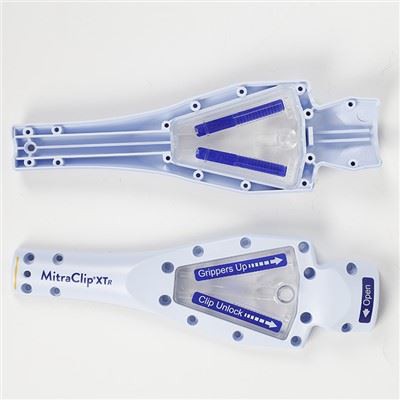

SJ Group has rich experience in plastic injection molds for medical products. We made varied types of Pipes injection mold for different customer, such as Abbott, FRESENIUS.

Good at Big Project Management

1. In the early stage of the project, SJ professional MF and DFM technical engineers will provide technical support；

2. Once the project kick off, there will be a special team to serve the large mold project. In SJ Group, total 50 designer, 36 project engineers, 25 tooling engineers, 220 tool maker, 55 quality engineers；

3. Before the project kick off, SJ will organize sales engineer, project engineer, technician, designer and tool maker to conduct preliminary communication；

4. Mold shipping does not mean the end of SJ service, SJ will fast response the customer's demands base on SJ world service system. SJ Europe, SJ America and SJ Mexico will take care of after sales service for our global customer, we will be right there, no matter when or where the customer contact us.

Top-Class Facility

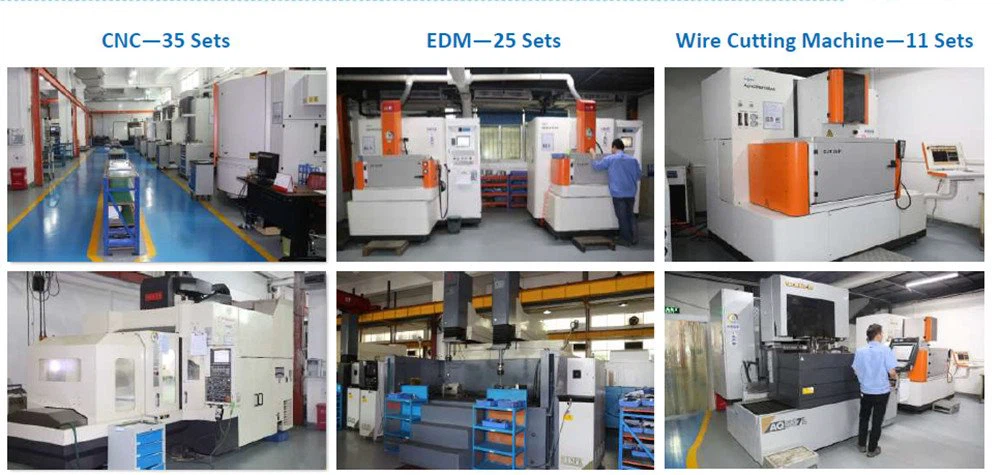

The company is equipped with a number of high-end equipment to ensure processing accuracy, inspection efficiency and production stability, such as CNC machine includes Mikron, AgieCharmilles, YASDA; EDM machines and wire cutting machines includes Makino and Sodick, and Measurement machines Zeiss CMM and Hexagon CMM; Injection machine includes Fanuc, Toshiba, Sumitomo, Arburg, Engel, etc.

Perfect Mold Shipping

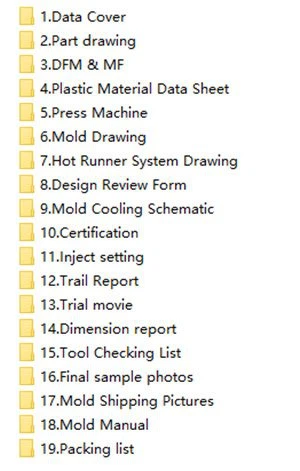

All the molds SJ made include these 19 documents/data when shipping. The disk cover these data will ship together with the mold, and we also uploaded the data to FTP site for easy downloading.

Molds are packed well as below:

After sales service

We have two after sales tool shops in USA and one in Mexico, one branch company in Germany, and six tool shops partners in Europe.
